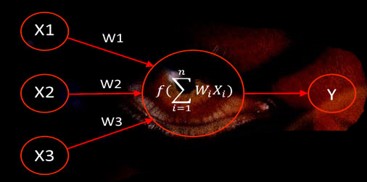

The FANNtom Menace project is an attempt to create an FPGA accelerated neural network. The concern is not to facilitate the training of neural networks on the FPGA but rather to use traditional methods to train a model that can be verified and run on a PC. This model, once trained to an acceptable level of accuracy, should then be used to configure the FPGA using appropriate synthesisable code. Due to the highly parallel nature of a neural network a significant speedup is expected here over traditional computational hardware. Not only do we expect the FPGA to improve on latency due to each layer of the neural network being able to be computed in parallel, we also expect a great increase in throughput due to each layer of the neural network acting as a pipeline stage on the FPGA. The example used to test our implementation will be the classification of an image as either a cat or a dog (a binary classifier). The speedup of this solution will be compared to a golden measure implemented on a PC - specifically our C++ implementation setup and compiled for an ordinary x86 CPU. Both latency as well as throughput will be considered as well as the resource consumption on the FPGA (amount of BRAM required etc).

Downloads:  Paper (PDF)   Description   project_unavail

This paper details the design and methodology for building a hardware accelerator for parallel digital audio processing. The Nexys 4 DDR evaluation board with a Xilinx Artix 7 FPGA is used for the implementation of the accelerator. The hardware accelerator is used to digitise an analog audio signal using a 12-bit ADC, and perform digital filtering thereon to create numerous audio effects. A PWM output, obtained by combining the results of the parallel filtering operations, is sent to a mono audio output port. Effects include echo, chorus, reverberation and distortion, specifically overdrive. The intensity of effects are designed to be dynamically adjustable using switches found on the Nexys 4 DDR board. The filters designed for the board are additionally implemented in Octave as a golden measure, and were tested on various audio signals to quantify performance, with which the FPGA performance is compared and evaluated. The paper also details the effects of bit truncation on audio, and the use of dithering and noise shaping to rectify said effects.

A brief overview of Direct Digital Synthesis systems is described as well as the background to some DDS systems and DDS systems in general. A modified version of the traditional DDS system is presented for use within the audio range of frequencies. Every western note (12-tone) is designed and implemented on the Nexys4 DDR FPGA. Multiple waveforms (Sinusoidal, Square, Sawtooth, Triangle) are created with 1024 Samples, each at 9-bit resolution. The resulting waveforms are presented to the listener via PWM coupled with a Low Pass Filter. The output is compared against simulated results and was found to be successful.

Downloads: Paper (PDF)  Description  project_unavail

A concept design description for an implementation, within  the  realm  of  high  performance  computing  hardware, of motion estimated frame interpolation. The resulting concept design is embedded in a capable output screen and receives input from  a  sub-par  frame-rate  HDMI  video  stream.  A  prototype is  developed  that  demonstrates  a  simplified  proof  of  concept involving  frame  averaging  as  a  method  of  interpolation.  The prototype is employed on an FPGA with a VGA output.

Downloads: Paper  Slides  Project (ISE)

This  paper  describes  the  design  and  testing  of  a device  created  to  reverse  the  effects  of  the  Message-Digest  5 (MD5) Hash Function in a massively parallel manner. The device will  be  used  to  find  the  original  data  used  to  generate  the 128-bit  MD5  hash.  The  system  is  initially  tested  on  a  Nexys  4 FPGA platform with the understanding that the project can later be  implemented  on  an  ASIC  platform  for  massively  improved performance.
It  was  found  that  the  prototype  FPGA  system  resulted  in significantly  faster  hash  reversal  than  the  golden  measure,  a parallel system  running  on  a  CPU.  This  result  was  obtained using only one solving module and can be expanded in parallel.

Downloads: Paper  Slides  Project (Python + ISE)

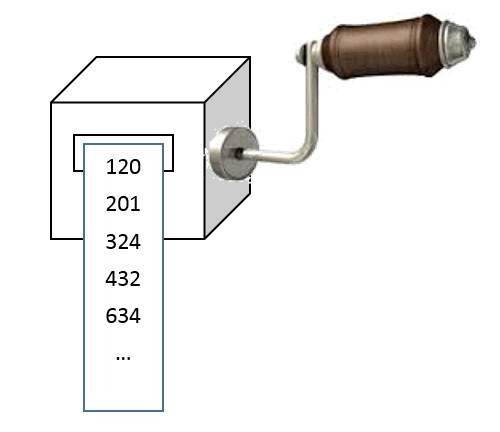

In this project, an accelerator is built that generates an arithmetic series of the form a(n) = a1 + (n-1)d . The parameters are specified as inputs (a1, d and n). The device writes the first n entries of the sequence into memory after which it asserts a 'Done' output.

Downloads: Paper  Slides  Project (C, ISE)

*Abstract*

*Abstract*

*Abstract*

*Abstract*

*Abstract*

*Abstract*

*Abstract*

*Abstract*

The objective the Data Encryption Accelerator That Handles Security Tasks Anytime Readily (DEATHSTAR) is to accelerate the process of encrypting a data stream. First the rst (reset) control line is clocked, this causes the DEA to reset any internal buffers and storage. Next, an encryption key is set by writing the (a single byte value) of the key to the din (data input) 8-bit data input bus, and then sending a positive edge to the kset (key set) control line. The dclk (data clock) is kept low. After this, the actual encryption starts, which involves iterating through all the data, one byte at a time, by writing a byte of data to the din input lines, then clock dclk clock line. The encrypted data is (pretty much) immediately available on the DEA's dout 8-bit output lines. The latter process is repeated for each item of data. To start with a simple XOR encryption is used as the encryption method. If time permits, this is taken further using a repeating pattern based on the key input.

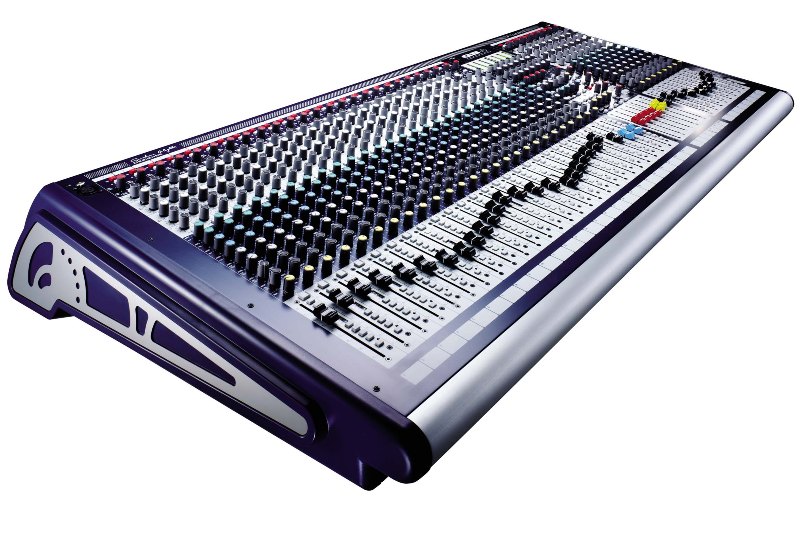

The problem to be solved is performing filtering and processing on audio in near real-time using a FPGA. Real-time filtering can be achieved in software, however when many filters are cascaded one after the other there will be a delay between audio input and output. For many applications this is an undesirable side-effect, stopping the system from being real time. Some types of filters that can be implemented are: Low-pass, high-pass, band-pass and band-stop. Some effects that can be implemented are: Echo, flange, chorus, reverb, vibrato, phaser, delay and distortion. (Why the acronym you might ask? Kind of obvious from this reference.)

The VADER system is a digitally accelerated add-on hardware device designed to recover passwords using an acquired hashed password and hashing function. Uses of such a device could be to speed up computationally expensive recovery of passwords for forensic purposes such as instances where a victim or suspects password protected information could assist in an investigation. In order for the system to begin the specific hashing function used to create the password hashes would need to be acquired; it is assumed that this is available and many commonly used hashing functions are indeed widely available. The hashed version of the password itself would also need to be acquired. The system will run parallelized functions on an FPGA to accelerate the recovery of the password. The system will first run a dictionary type cracking attempt and following this if it is unsuccessful a brute force algorithm will be applied. Click on the VADER project details to find out more, or download the whole project zip file from the link below.
